Customized Commercial Steel Frame Building with Corrugated Steel
Sheet Roof Cladding
Product Description:
Pre-engineered steel structure workshop is one of the innovative
technologies in building construction solutions. Its economical
price, convenient transportation and quick installation make it
more and more popular in construction area.

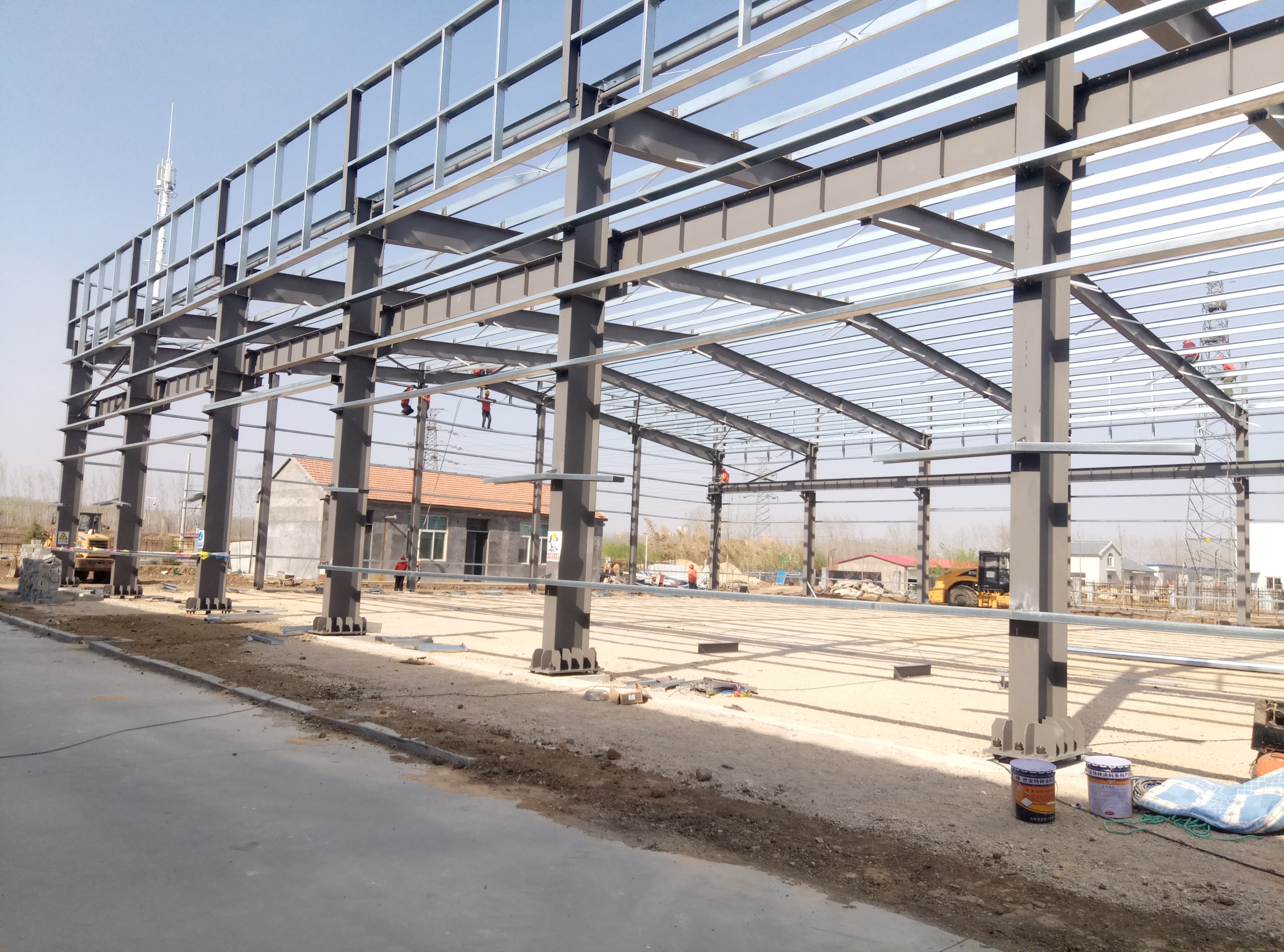

Steel structure workshop composition |
1.The Primary Framing (main frames) |
2.Secondary Framing (Z and C sections) |
3.Roof and Wall panels (steel sheet and insulated sandwich panels) |
4.Steel Decking Floor |
5.Structural subsystem (Canopies, Fascias, Partitions, etc.) |
6.Mezzanines, Platforms |
7.Other Building Accessories (Sliding Doors, Roll Up Doors,
Windows, Louvers, etc.) |
Features:
Some information we need to know before making the price for prefab
warehouse steel structure building |
Location (where will be built) | _____country, area |
Size: length*width*height | _____mm*_____mm*_____mm |
wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
snow load (max. snow height) | _____kn/m2, _____mm |
anti-earthquake | _____level |
brickwall needed or not | If yes, 1.2m high or 1.5m high |
thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; if not, the metal steel sheets will be ok. The cost
of the latter will be much lower than that of the former. |
door quantity & size | _____units, _____(width)mm*_____(height)mm |
window quanity & size | _____units, _____(width)mm*_____(height)mm |
crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting
height _____m |

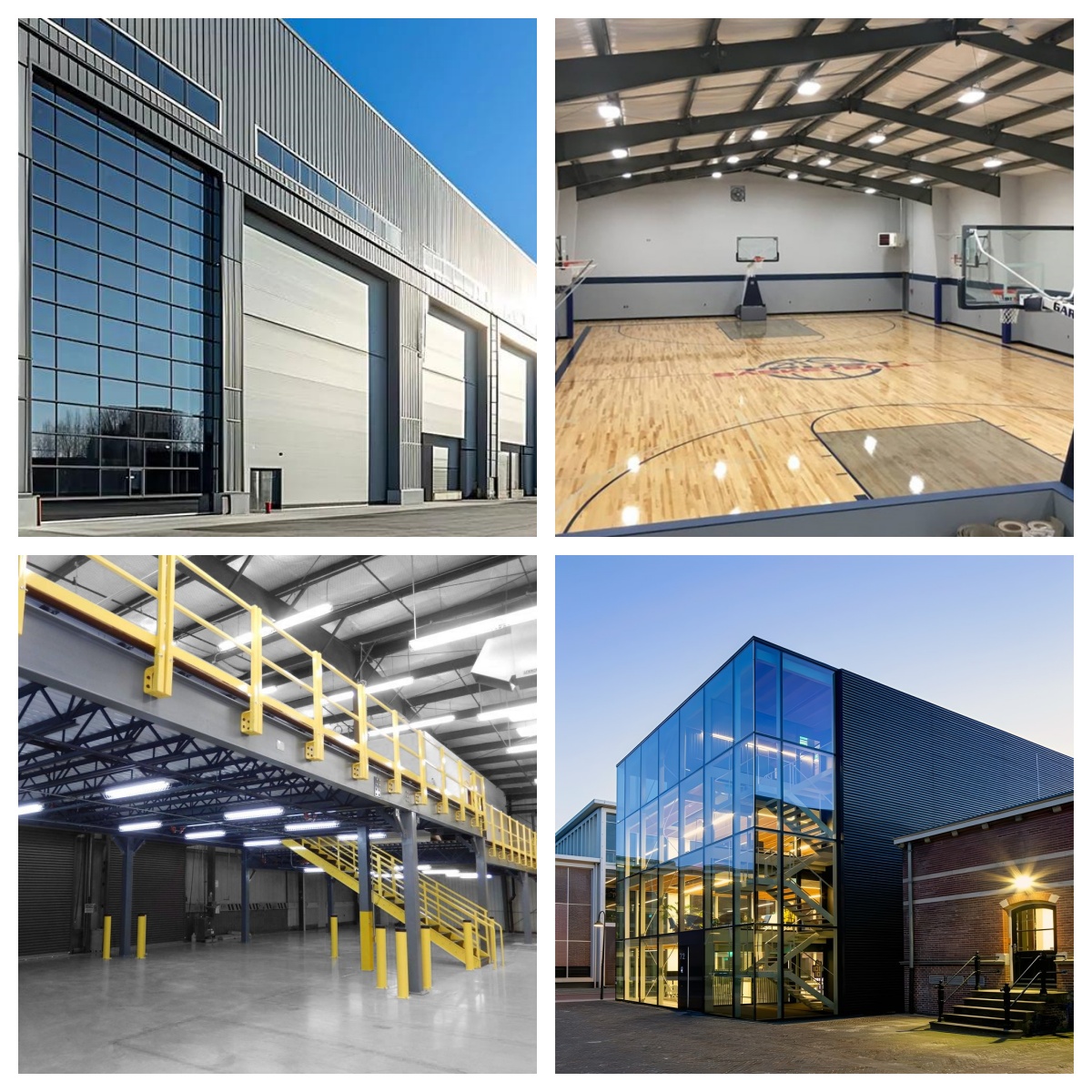

Applications:
Customization:
The main frame of the Steel Structure Workshop is made of Light
Steel Q345 Q235, and the color can be customized according to
customer's requirement. The product is manufactured according to GB
Standard and is suitable for Building Construction, Building
Construction, and Commercial Steel Frame Building. The product can
withstand Snow Load of 0.5-1.0KN/m², and it is specifically
designed for use as a Steel Structure For Auto Service Shop.
| The main options of the componets are as the following: |
| Main Structure | Column | Q355B Welded H column |
| Rafter, Beam | Q355B Welded H column |
| Surface processing options | 1. Epoxy zinc-rich primer + epoxy mica termediate paint |
| 2. Hot dip galvanization |
| Sub Structure | Purlin | Q235B, C section steel, galvanization 80-275g/m2 |
| Angle brace | Q235B, L- steel |
| Cross bracing | Q235B round bar, L-steel |
| Tie bar | Q235B, round pipe |
| Batter brace | Q235B, round bar |
| Roof System | Roof panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Both
sides are steel sheet. Thickness of roof panel 50mm/75mm/100mm,
thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm-0.6mm |
| Gutter options | 1. Galvanized steel gutter, thickness 2.0mm/2.5mm, 3.0mm |
| 2. Painted, Pre-finished steel gutter, thickness 0.4mm/0.5mm/0.6mm |
| Down spout | PVC pipe |
| Steel flashing and cover | Steel sheet for roof ridge cap, gable wall end cover and corner
cover |
| Options | Roof skylight 1.8mm PVC sheet and stainless steel ventilator |
| Wall System | Wall panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two
sides is steel sheet. Thickness of wall panel 50mm/75mm/100mm,
thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm/0.5mm |
| 3. Brick wall (provided by client) |
| Door | 1. Roller door for truck, size customized |
| 2. Sliding door for truck, size customized |
| 3. Access door, steel door, glass door etc. |
| Window | PVC or Aluminum frame, Fixed, swing, sliding, louver etc, size
customized |
| Steel flashing and cover | Steel sheet end cover and corner cover |
| Accessories and fasteners | | Anchor bolts, chemical bolts, high strength bolts, ordinary bolts,
self-tapping screws, rivet etc. |
Support and Services:
The Steel Structure Workshop product comes with comprehensive
technical support and services to ensure its proper installation
and maintenance. Our team of experts provides:
- Site assessment to determine the best location for the workshop
- Design and engineering services to customize the workshop to meet
specific requirements
- Installation services to ensure proper assembly and safety
compliance.
Our goal is to provide our customers with a high-quality, durable,
and safe workshop that meets their needs and exceeds their
expectations. Contact us for more information on our technical
support and services.
FAQ:
Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to
Qingdao port. And we have total 3 workshops from steel structure to
wall and roof sheet.
Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through
cutting, bending, welding, shot blasting, ultrasonic testing,
packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client
requirement.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity,
partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors
guiding installation is available. We can do turnkey job for some
kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution
according to your requirements before placing order. Proposal
drawing, Shop drawing, 3D drawing, Materials photos, Finished
projects photos are available, which will help you understand the
solution we provided deeply.
