Steel Structure Construction Prefabricated Angola Civil House

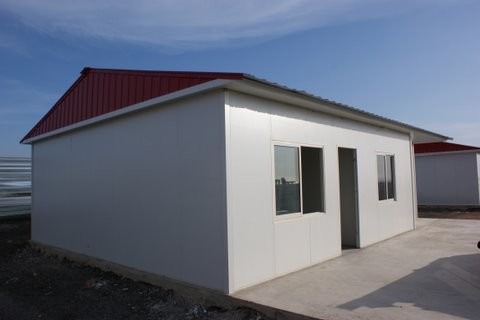

This project is that of the Angola civil house, with building area
69.93㎡/unit, 10.08m length, 7.35m width, eave height 2.6m; one
floor and double slopes; wall and ceiling are made of V-950 type
sandwich panels (0.5mm white/75mmEPS/0.5mm white); red V-900 type,
0.4mm steel sheet is used for roof sheet; square tube (□40*40*2) is
adopted for beams and purlin.
Lay the foundation:
PEB concept has been very successful and well established in North
America, Australia and is presently expanding in U.K and other
European countries. PEB is ideal for construction in remote & hilly
areas due to its low cost and fast completion. PEB concept has
acted as a catalyst in the infrastructure development of the
country. Single storied houses for residential purposes take
minimum time for construction and can be built in any type of
geographic location like extreme hot, extreme cold hilly areas,
high rain prone areas, plain land and seismic zones etc. The PEB
rigid frame comprises of built-up members with tapered or straight
columns and tapered rafters. The frame is erected by bolting the
end plates of connecting sections together.
C.APPLICATION
Pre-engineered building systems finds primary application in
construction of Warehouses and construction of Industrial
Buildings. The recent focus has also shifted to cover Rural as well
as urban, individual and mass housing projects, farmhouses and slum
rehabilitation projects.
Application of pre-engineered steel buildings has also included the
following:
PEB Structures are fabricated to the end user's requirement in a
factory and erected at site, which leads to saving of time.
PEB is ideal for Factory Buildings, Warehouses, Aircraft Hangars,
Indoor Stadiums, Fuel Stations, Metro Stations, Bus Terminals,
Parking Lots, Schools, and Outdoor Stadiums with canopies where the
intermediate columns are to be avoided.
PEB is ideal for Show Rooms, Office Complexes, Commercial Complexes
& Supermarkets.
PEB is ideal for Labour Camps, Community Centers, Equipment housing
, Telecommunication shelters, Airports, Railway Stations & Railway
Storage yards, Exhibition Halls etc. due to its aesthetics look.
PEB is ideal for buildings in City Area where land cost is too
high.
PEB is ideal for buildings that need to be relocated to other
places.
PEB is ideal for buildings that are to be built faster.
PEB is ideal for Residential Sectors .
PEB is ideal for Buildings that need to be expanded in future
D.THE MATERIAL SPECIFICATIONS OF PEB MEMBERS ARE AS BELOW:
PRIMARY BUILT UP MEMBERS
High grade steel plate conforming to ASTM A572M Grade 345 Type 1
carrying minimum Yield Strength of 34.5kN/cm2. It is factory Pained
with a Minimum of 40 microns (DFT) of red oxide primer.
SECONDARY MEMBERS:
Galvanized high grade steel conforming to ASTM A653 Structural
quality Grade 50 with zinc coating G90, Available in 1.5 mm, 1.75
mm, 2.0 mm and 2.5 mm thicknesses having minimum Yeild Strength as
34.5 kN/cm2.
BRACING SYSTEMS :
M.S. Rod bracing shall conform to Structural Components of ASTM A36
Grade 36 or equivalent with minimum yield stress of 34.5KN/cm2.
SPECIFICATION OF STEEL:
Flange & web material for buildup section of all PEB structural
member are fabricated from high grade steel plate conforming IS:
2062, ASTM AS 572 50, Grade 345 type. Purlins are secondary members
of steel structure are cold formed Z & C shaped section are made of
high grade steel conforming to ASTM A607 grade 50.
Under construction:
E.FABRICATION CAPABILITIES TO MEET CLIENT NEEDS
It is the practice of assembling components of a structure in a
place and transporting complete assemblies or sub-assemblies to the
site where the structure is to be located. Off-site fabrication
offers advantages to help achieve significant time and cost
savings, support fast-track project schedules and reduce risks such
as adverse weather conditions and labor shortages.
Shiva Infra's comprehensive knowledge of EPC and project management
(PM) allows us to optimize Clients' overall fabrication and
construction configuration for cost and schedule advantages.
Pre Engineered Buildings offered by us are based on PEB concept,
and are widely known for their exclusive designs and compactness.
Our range of Pre Engineered Buildings includes PEB, Prefab
Buildings, Industrial Sheds, Prefab Sheds, Metal Roofing, Wall
Cladding, Metal Decking, Cee-Zed Purlins, PUF Panels, Insulated
Sandwitch Panels, Metal False Ceiling, Turbo Roof Vents, Insulation
and FRP-Polycarbonate Sheets.
We specialize to offer construction of heavy machine foundations
for Retrofitting of Construction. With the support of our
expertise, we undertake these projects, which helps make the
foundation more strong, enabling it to bear heavy weight and ensure
resistance against any natural hazards.
Due to the many decades of experience thus gained in design,
manufacture, transport and installation, we have and will continue
to develop systems which have proven themselves outstandingly in
modern prefabricated element and system-oriented construction. Vast
storage areas allow an economic production capacity utilization as
well as stockkeeping in line with the requirements of a building
site.
F.Advantages of Fabrication
Early fabrication design to improve constructability
Modularization-specific designs
Focused material and equipment procurement planning to support
off-site fabrication
Advanced sourcing methods / Established global supplier partners
(SRA)
Global market knowledge / Global purchasing volume
Supply chain / Logistics / Expediting
Quality control / Quality assurance
We offer a flexible approach to fabrication solutions, with a range
of fabrication options to fit Clients' specific needs.
Thanks to experienced engineers and technicians and well
thought-out logistics processes, we are able to guarantee our
clients maximum quality and on-time delivery. These prerequisites
enable our group of companies to continue and to increase their
efforts to develop further innovative prefabricated element sytems
into the future despite keen competition, and to respond with
flexibility to all market requirements
Use | Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House,
Shop, Toilet, Villa, Warehouse, Workshop,Plant |
Product Type | Sandwich Panel Houses |
Design Style | Modern |
Application Fields | Steel Structural Fabrication Construction |
Type | Customizable |
Door | Sandwich Panel Door |
Window | Aluminum Window |
Usage | Public Housing |
Product name | Modular Building Three floors color steel prefabricated house |
