Product Description:
Our Steel Structure Building product is highly customizable, with
drawing designs provided by customers or designed by our team of
experts. We understand that every project has unique requirements,
which is why we offer a wide range of accessories such as flashing,
skylights, fans, gutters, and more to ensure that your building is
tailored to your specific needs.
One of the key features of our Steel Structure Building product is
the option for insulation. We offer a variety of insulation
materials such as EPS, glass wool, rock wool, and PU to ensure that
your building is energy-efficient and comfortable for all
occupants.
Whether you require a steel structure building for industrial,
commercial, or residential use, our product is the right choice for
you. With its superior strength, durability, and customization
options, our Steel Structure Building product is the perfect
solution for your next project. Contact us today to learn more
about how our Steel Structure Building product can meet your
specific needs.
Applications:
The KXD Steel Structure SS1201 is a versatile and durable product
that can be applied to various occasions and scenarios. Its steel
composition ensures that it is robust, resistant, and long-lasting.
Here are some of the product application occasions and scenarios:

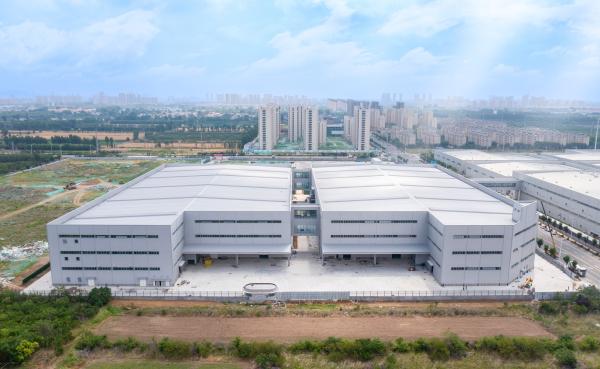

Warehouses
The KXD Steel Structure SS1201 is ideal for warehouses due to its
large span and high strength. It can be used to store heavy
machinery, equipment, and goods. The steel structure can withstand
heavy loads, making it an excellent option for custom steel
fabrication.

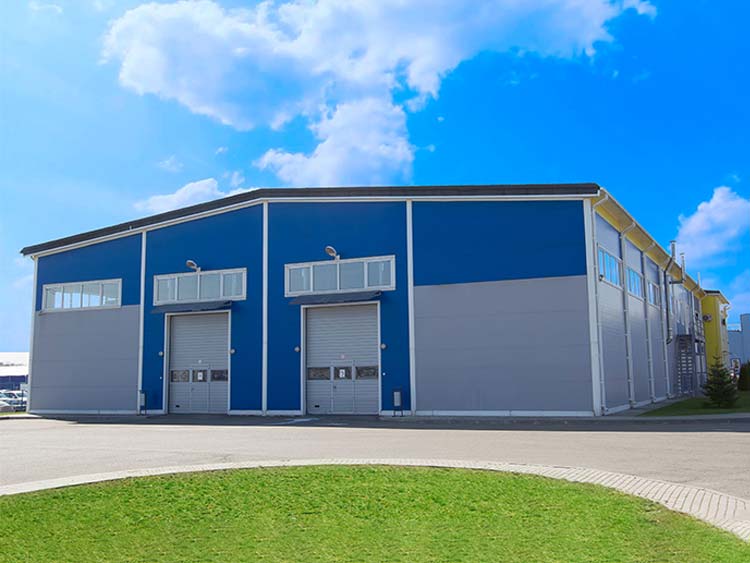

Workshops
The KXD Steel Structure SS1201 is also suitable for workshops where
heavy steel fabrication is required. The steel structure can be
used to support cranes, hoists, and other heavy machinery. The
steel sheet or sandwich panel can be used for the roof and wall,
providing insulation and protection against the elements.
Commercial Buildings
The KXD Steel Structure SS1201 is an economical option for
commercial buildings such as supermarkets, offices, and retail
stores. The steel structure can be customized to fit the specific
needs of the business, and the accessory options such as flashing,
skylight, fans, and gutter can be added to enhance the
functionality and aesthetic appeal.
Agricultural Buildings
The KXD Steel Structure SS1201 is perfect for agricultural
buildings such as barns, silos, and storage sheds. The steel
structure can withstand harsh weather conditions and resist
corrosion, making it an excellent option for long-term use. The
steel sheet or sandwich panel can be used for the roof and wall,
providing insulation and ventilation.
Residential Buildings
Customization:
| Main Structure | Column | Q355/Q235 H- steel , Box column is also available |
| Rafter, Beam | Q355/Q235 H- steel |
| Surface processing options | 1. Epoxy zinc-rich primer + epoxy mica intermediate paint (120μm
thickness) |
| 2. Hot dip galvanization |
| Sub Structure | Purlin | Q355B, C/Z steel section, galvanization 275g/m2 |
| Angle brace | Q235B, L- steel |
| Cross bracing | Q235B round bar, L-steel |
| Tie bar | Q235B, round pipe |
| Batter brace | Q235B, round bar |
| Roof System | Roof panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two
sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm,
thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm/0.5mm/mm |
| Gutter options | 1. Galvanized steel gutter, thickness 2.0mm/2.5mm, 3.0mm |
| 2. Painted, Pre-finished steel gutter, thickness 0.4mm/0.5mm/0.6mm |
| Down spout | PVC pipe |
| Steel flashing and cover | Steel sheet for roof ridge cap, gable wall end cover and corner
cover |
| Options | Roof skylight 1.8mm PVC sheet and stainless steel ventilator |
| Wall System | Wall panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two
sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm,
thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm/0.5mm/mm |
| 3. Brick wall (provided by client) |
| Door | 1. Roller door for truck, size customized |
| 2. Sliding door for truck, size customized |
| 3. Access door, steel door, glass door etc. |
| Window | PVC or Aluminum frame, Fixed, swing, sliding, louver etc, size
customized |
| Steel flashing and cover | Steel sheet end cover and corner cover |
| Accessories and fasteners | | Anchor bolts, chemical bolts, high strength bolts, ordinary bolts,
self-drilling screws, rivet etc. |
| Other Options | | Crane 5T, 6T, 10T, 16T, 30T etc. |
Customization services for your building include:
- Design consultation
- Engineering and calculations
- Material procurement and quality control
- Processing and manufacturing
- Quality inspection and acceptance
- Installation guidance
- After-sales service
Support and Services:
Our Steel Structure Building product comes with comprehensive
technical support and services to ensure our customers have a
seamless experience. Our team of experts is available to provide
guidance and assistance throughout the installation process. We
also offer maintenance services to ensure the longevity and safety
of the building. Our technical support includes:
Our goal is to provide our customers with a reliable and durable
steel structure building that meets their specific needs. Our
technical support and services are designed to ensure that our
customers get the most out of their investment and have a building
that they can rely on for years to come.
FAQ:
Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to
Qingdao port. And we have total 3 workshops from steel structure to
wall and roof sheet.
Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through
cutting, bending, welding, shot blasting, ultrasonic testing,
packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client
requirement.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity,
partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors
guiding installation is available. We can do turnkey job for some
kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution
according to your requirements before placing order. Proposal
drawing, Shop drawing, 3D drawing, Materials photos, Finished
projects photos are available, which will help you understand the
solution we provided deeply.
