Product Description:
Prefab Galvanized Steel Frame poultry house/Chicken House
Main Structure
(Steel tube truss system)we adopt hot-dip galvanizing C section or
steel tube truss beam to reduce self-weight of design load and
dosage of the steel. At the same time, hot-dip galvanized can
widely improve anti-corrosion of the steel. (The construction cycle
of the steel structure work is short, which reduces the cost of the
project effectively. The steel structure has strong shock
resistance and can improve the comprehensive anti-seismic property
of the whole house).
Substructure(Cold-formed thin-walled steel)
Roof purlin uses the hot-dip galvanized Z or C section. The way to
continuous lap makes the steel frame as whole. Roof purlin uses the
hot-dip galvanized C section steel. All components adopt bolted
connection, no welding, which makes the structure overall
appearance smooth.
Technical Parameters:
| Company Name | Qingdao KXD Steel Structure Co., Ltd |
| Application | chicken farm house, poultry farm house, broiler house, breeder
house, chicken house, poultry house, broiler farm housing,steel
structure chicken house, steel structure poultry house, steel
structure broiler house, steel structure breeder house, poultry
farm, chicken farm house, automatic poultry broiler house, chicken
farm, chicken farm building, |
| Building type | Opening --Suitable for areas where the climate is warm and not hot |
| windowed--Natural wind, when the weather is too hot, mechanical

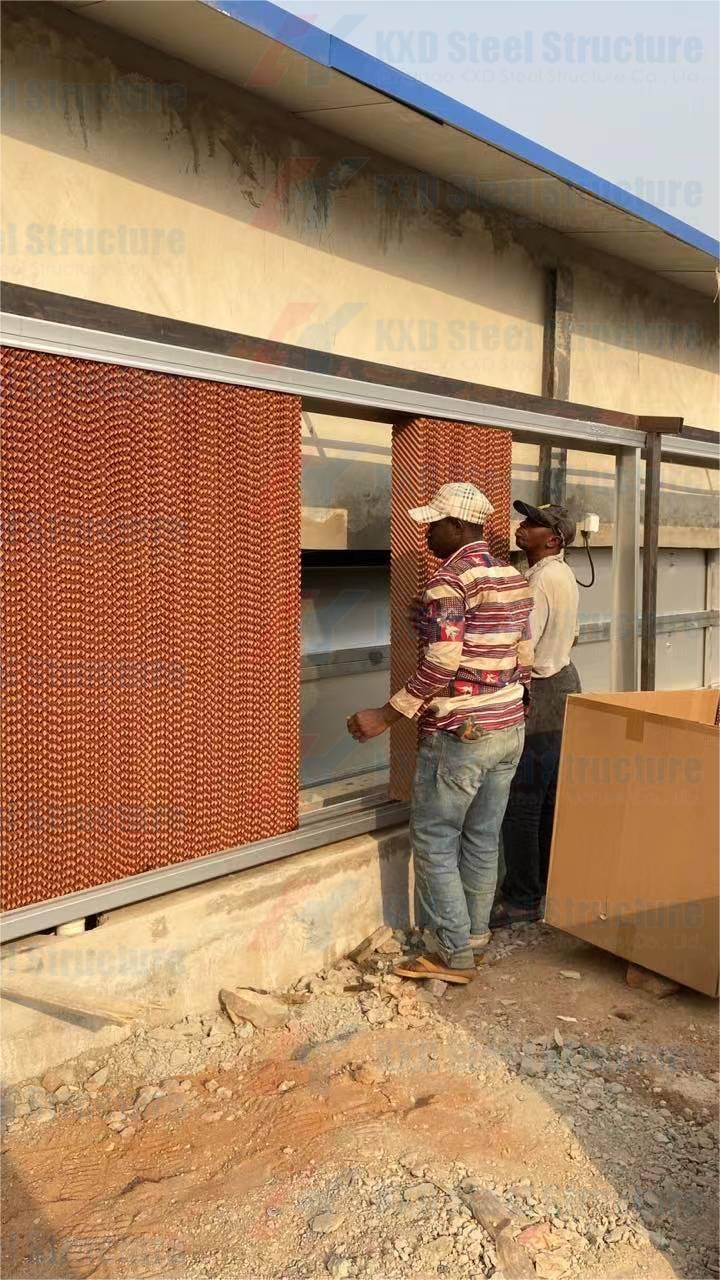

ventilation and water curtains to cool down |
| Closed, Environmental control)--Suitable for any climate |
| Chicken type | Breeder, egg layer hen, broiler etc |

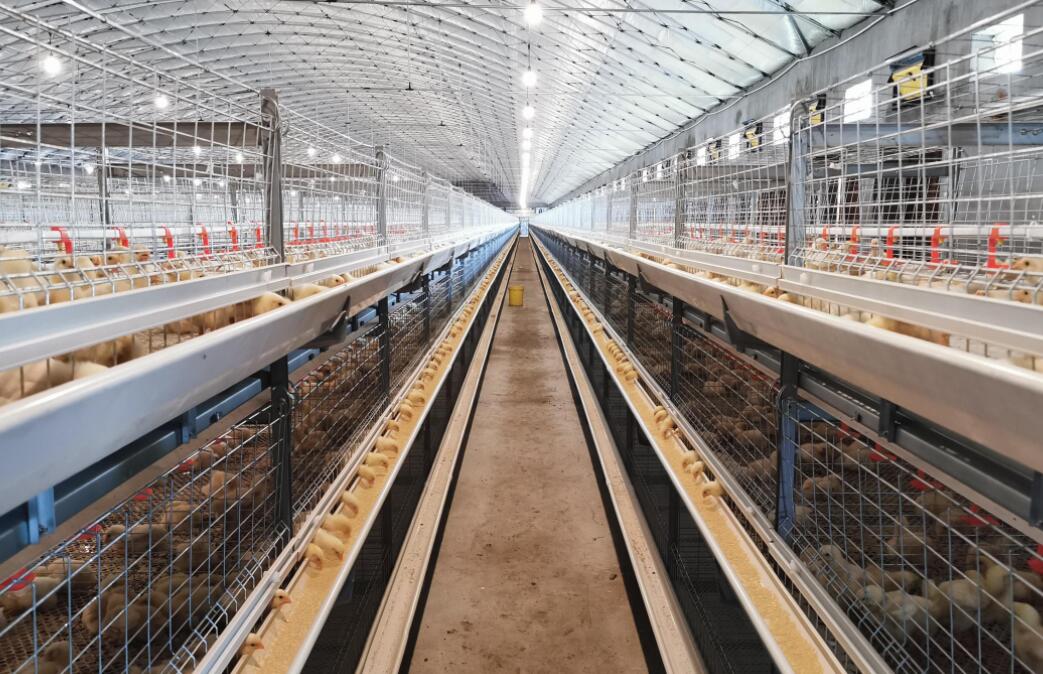

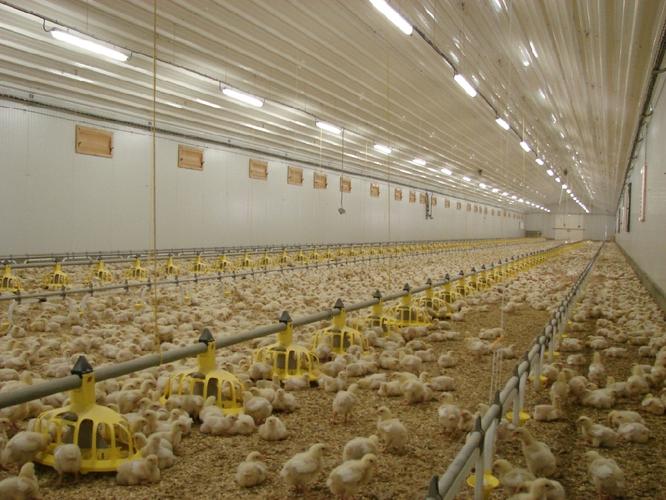

| breeding type | Flat chicken house, Cage chicken house, Free-range chicken house |
| Grade | Q355(S355JR)or Q235(S235JR) steel or as request |
| Clear span: | 3~25m without middle column |
| (width) | popular width:9m,10m,12m,14m,15m |
| Height | 2~6m |
| popular height 2.4m for flat chicken house,5m for cage chicken
house |
Popular bay
(column distance) | 3m or 6m |
| Length | as your requirement |
| popular length 30~120m |
Applications:
1. Column: Galvanized Q235, Q345 H section steel or square tube
2. Beam: Galvanized Q235, Q345 H section steel or square tube
3. Purlin: Galvanized Q235 C channel
4. Vertical and transversal support: Q235 angle steel, round bar or
steel pipe.
5. Tie bar: Q235 steel pipe
6. Brace: Q235 round bar
7. Sleeve: Q235 steel pipe
8. Roof: Corrugated steel sheet with insulation or sandwich panel
9. Wall: Wire meshes with curtain system or sandwich panel
10. Feeding system: Feeder motor connect with feeder hopper
11. Nipple drinker system
12. Tunnel ventilation and heating system
13. Curtain system: Automatic curtain machine
14. Suspension system with ceiling winch
15. Ventilation: External damper fan with cone
Special attention must be paid to hygiene and heat insulation in
the planning of poultry houses. Offer sophisticated complete
systems with gravity or forced ventilation through to open stalls
and creates the prerequisites for an ideal indoor climate and
optimal wellbeing for your poultry.
Support and Services:
The Steel Structure Poultry House product comes with the following
technical support and services:
- Design and engineering assistance
- Customizable building options
- Fabrication of all steel components
- On-site delivery and installation
- Technical assistance during construction
- Ongoing maintenance and repair services
Packing and Shipping:
The Steel Structure Poultry House product will be packed in sturdy
wooden crates to ensure safe transportation and delivery.
Shipping:
Our shipping partners will deliver the product directly to your
location. Shipping costs will be calculated based on the
destination and weight of the product. Please provide us with
accurate delivery information to ensure smooth and timely delivery.
FAQ:
Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to
Qingdao port. And we have total 3 workshops from steel structure to
wall and roof sheet.
Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through
cutting, bending, welding, shot blasting, ultrasonic testing,
packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client
requirement.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity,
partial shipment is allowed for big order.

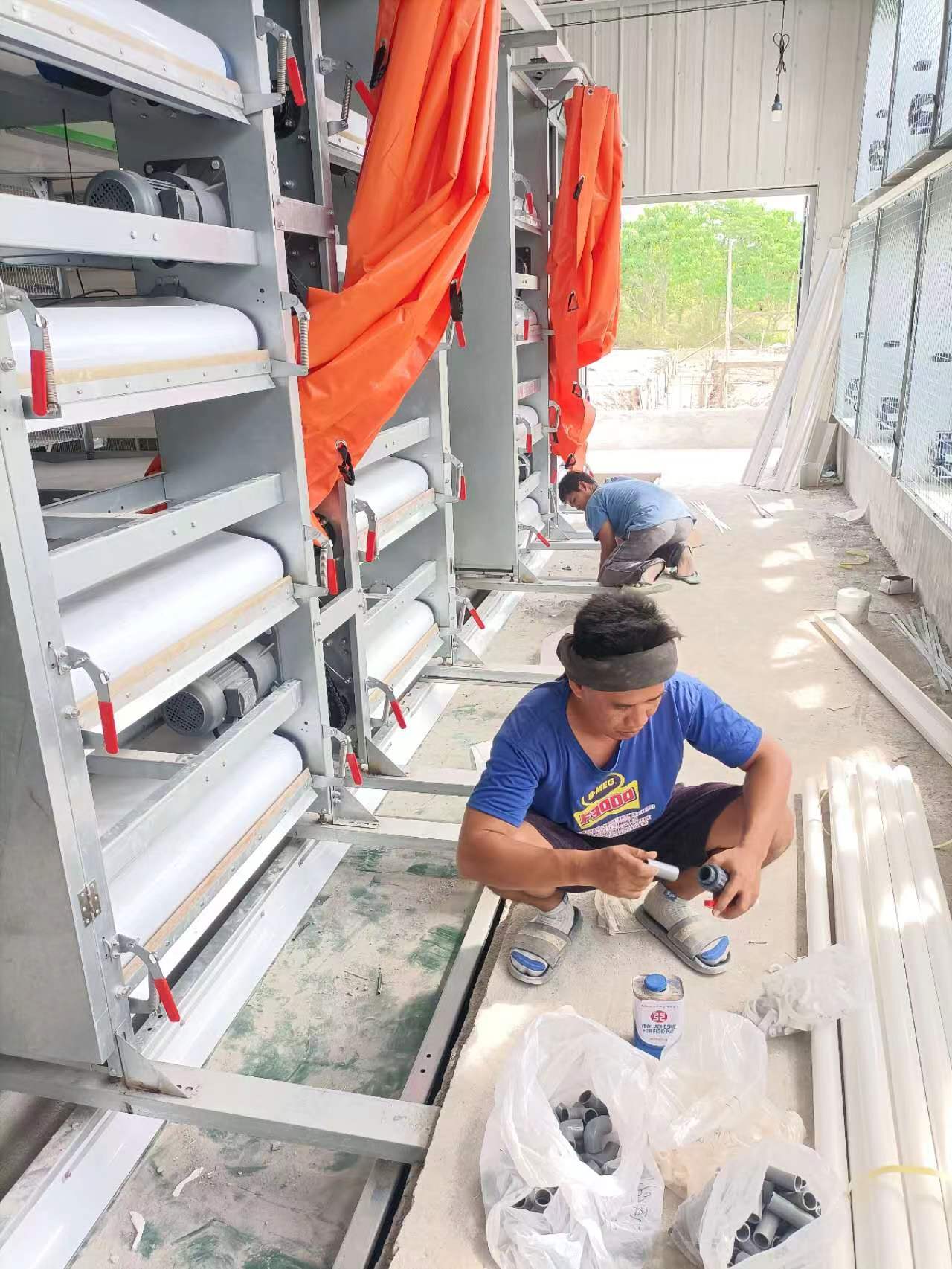

Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors
guiding installation is available. We can do turnkey job for some
kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution
according to your requirements before placing order. Proposal
drawing, Shop drawing, 3D drawing, Materials photos, Finished
projects photos are available, which will help you understand the
solution we provided deeply.
