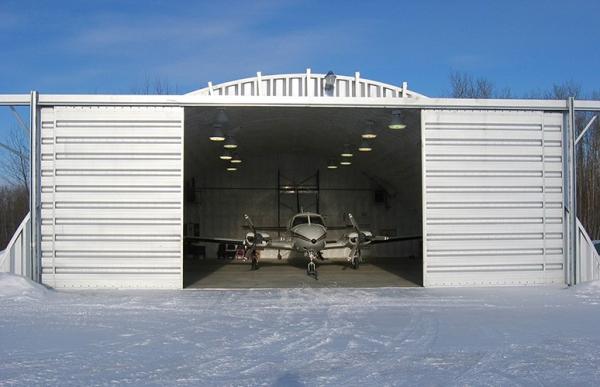

Plant Large Span Pre-Engineering Low Cost Industrial Steel Structure Aircraft Airplane Hangar with Door

Product Description:

Product information

Base	Cement and steel foundation bolt
Main frame	H beam
Material	Q235B, Q345B or others as buyers' requests
Purlin	C or Z purlin: Size from C120~C320, Z100~Z20
Bracing	X-type or other type bracing made from angle, round pipe
Bolt	Plain bolt and High-strength bolt
Roof & wall	Sandwich panel or color plate
Door	Sliding or rolling door
Window	Aluminium alloy window
Surface	Two times of Anti-rust Painting or Hot Dip Galvanized
Sheet	0.5mm or 0.6mm galvanized sheet
Accessories	Semi-transparent skylight belts, Ventilators,down pipe, galvanized gutter, etc

Technical Parameters:

Specifications
1)Size(m):	Width * Length * Height;
2)Type:	Single slope, double slope, Multi-slope;
	Single span, double-span, Multi-span;
	Single floor, double-floor, Multi-floor;
3) Base:	steel foundation bolts
4) Steel frame:	Material Q345(S355JR)(Gr50)or Q235(S235JR) steel;
	Straight cross-section or Variable cross-section;
	steel welded H section painted or galvanized.
5) Bracing:	X-type or V-type or other type bracing made from angle, round bar, etc ;
6) Wall & Roof Purlin:	C section channel or Z section channel ,Size from C80~C300; Z100~Z300;
7) Roof & wall cladding	Single color corrugated steel sheet 0.326~0.7mm thickness;
	Sandwich panel with EPS, ROCK WOOL,GLASS WOOL, PU etc insulation, thickness around 50mm 75mm 100mm 120mm 150mm 200mm;
	recommend coating PVDF SMP HDP PE
8)Window:	UPVC/PVC or Aluminum Alloy window frame with glass.
9)Door:	Exterior door:Sliding or Roller shutter door.
	Internal door:50mm thickness EPS sandwich panel with an aluminum alloy door frame
10) Gutter material:	Color steel sheet or galvanized steel or stainless steel;
11)Rainspout:	PVC pipe
12)Connection	high strength bolts ,intensive bolt,self-drilling screws.
13)Accessories:	Skylight panel, Ventilation, Fasteners etc
14)Surface process:	Shot blasting Sa2.5;Two layers of Anti-rust Painting or galvanized
15) Packing:	Main steel frame without packing load in 40' GP, roof and wall panel load in 40' HQ

Applications:

Support and Services:

Our Steel Structure Hangar product comes with comprehensive technical support and services, including:

• Design and engineering support
• Material selection guidance
• Construction supervision
• Installation assistance

Our team of experts is dedicated to providing you with the highest level of support to ensure your hangar is built to meet your specific needs and requirements.

FAQ:

Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to Qingdao port. And we have total 3 workshops from steel structure to wall and roof sheet.

Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.

Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirement.

Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity, partial shipment is allowed for big order.

Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.

Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution according to your requirements before placing order. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.

Qingdao KXD Steel Structure Co., Ltd, is one of the largest manufacturers of steel buildings, specialized design and manufacturer for pre-engineered/fabricated steel buildings and specialized architectural/structures in China with capacity over 10000 tons monthly and having state of the art manufacturing facility with laser and robotic machines in our 3 production units.

In a bid to render our clients with impeccable products and services, our company has acquired CE certification (EN1090 certificate), ISO 9001, ISO140001, ISO45001 Certificate and WPQR for anticipated apprasal from our clients. Our footprints shall be witnessed in a large number of countries and regions such as Canada, Australia, Peru, Sri Lanka, France, Brazil, England, America, Ethiopia, Algeria, etc., that is to say, more than 130 countries around over the world.

What attaches great importance to the success of a steel building company is a solid design and engineering team. At KXD, you shall witness more than 50 members of designers, architects, detailers, consultants etc. KXD is destined to offer tailed and reliable design and engineering services to each of our customer whether for industrial, commercial or agricultural property developments.

Based on the moto of Trustyworthiness, Professionalism, Cooperation, Mutual benefits, our company is building a comprehensive industrial chain system gradually and making great efforts to supply our quality products and perfect after-sales services to worldwide clients. Our goal is to be a household name in the steel building industry.
