Steel Frame Structure Building Facilities And Construction
Materials for Construction
Product Description:

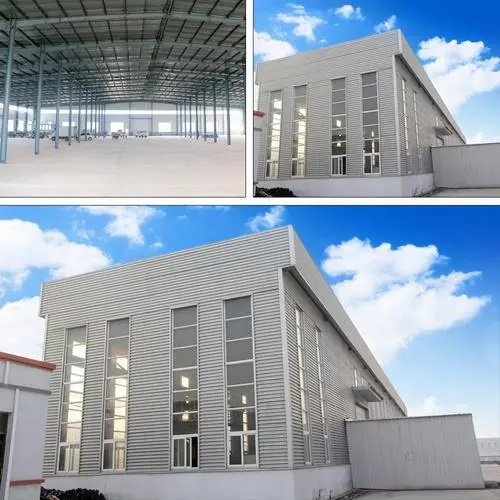

Steel Structure Building provides affordable, durable, and
low-maintenance solutions for workshops, warehouses, agricultural
buildings, garage buildings, and aircraft hangars. Compared to
wooden structures, steel is resistant to strong winds, heavy snow,
and termites. The interior layout of the metal buildings can be
fully customized to meet your needs.
The steel structure building is sturdy and durable and can
withstand high winds, snow, or earthquakes. Our structural
engineers design the building structure according to the local wind
and snow load to ensure that the entire building can withstand the
harsh external weather.
The steel structure is installed quickly, and the construction time
is short. All steel components were processed in the workshop, cut,
welded, drilled, sandblasted, and painted, and delivered to the
project site for installation. It does not cause environmental
pollution at the installation site.
The enclosure system is made so that they overlap when assembled.
It does not leave any openings, so the building is isolated from
the outside world. It helps to make the building warm in winter and
cool in summer, saving energy costs.
| Specifications |
| 1)Size(m): | Width * Length * Height; |
| 2)Type: | Single slope, double slope, Multi-slope; |
| Single span, double-span, Multi-span; |
| Single floor, double-floor, Multi-floor; |
| 3) Base: | steel foundation bolts |
| 4) Steel frame: | Material Q345(S355JR)(Gr50)or Q235(S235JR) steel; |
| Straight cross-section or Variable cross-section; |
| steel welded H section painted or galvanized. |
| 5) Bracing: | X-type or V-type or other type bracing made from angle, round bar,
etc ; |
| 6) Wall & Roof Purlin: | C section channel or Z section channel ,Size from C80~C300;
Z100~Z300; |
| 7) Roof & wall cladding | Single color corrugated steel sheet 0.326~0.7mm thickness; |
| Sandwich panel with EPS, ROCK WOOL,GLASS WOOL, PU etc insulation,
thickness around 50mm 75mm 100mm 120mm 150mm 200mm; |
| recommend coating PVDF SMP HDP PE |
| 8)Window: | UPVC/PVC or Aluminum Alloy window frame with glass. |
| 9)Door: | Exterior door:Sliding or Roller shutter door. |
| Internal door:50mm thickness EPS sandwich panel with an aluminum
alloy door frame |
| 10) Gutter material: | Color steel sheet or galvanized steel or stainless steel; |
| 11)Rainspout: | PVC pipe |
| 12)Connection | high strength bolts ,intensive bolt,self-drilling screws. |
| 13)Accessories: | Skylight panel, Ventilation, Fasteners etc |
| 14)Surface process: | Shot blasting Sa2.5;Two layers of Anti-rust Painting or galvanized |
| 15) Packing: | Main steel frame without packing load in 40' GP, roof and wall
panel load in 40' HQ |
Features:
Multi-Storey Factory Supply Prefabricated Customized Engineered
Steel Structure Frame Building Construction
1. We purchase raw material directly from big mills in order to
reduce the cost.
2. All the material for steel structure workshop are H beam, C
purlin, Z purlin, corrugated color steel sheet and sandwich panels.
3. Wall panels and proof panels can be corrugated sandwich panels
or color corrugated steel sheet.
4. The steel structure has the advantages of quake-proof,
pollution-free, energy-saving and security in construction.
5. It's characterised by light weight, easy installation, short
construction period, quick investment return and eco-friendly.
6. We have our own Quality Control Department to guarantee the
quality for projects.
Drawings & Quotation Information: |
1) Customized design is welcomed. |
2) Could you tell me your steel structure project? |
Basic design requirements and design Load |
1. Project site location: |
2.Overall dimension(length*width*eave height in meters): |
3. Mezzanine or not?How many kgs of load per square meter on
mezzanine? |
4. Single-layer steel sheet wall or sandwich panel wall: |
5. Snow load if applicable: |
6. Wind speed/load: |
7. Interior column allowed or not: |
8. Overhead crane needed or not, capacity?: |
9. Any other particular requirements?: |
Building Purpose: we will recommend the best design for the purpose
of the building |
A.Warehouse/Storage |
B.Factory |
C.Agriculture Barn |
E.Repair/Mechanic Shop |
F.Office Space |
G.Medical Warehouse |
H.Animal Farm (please confirm what kind of animal) |
Support and Services:
Our Multi Storey Steel Building product comes with comprehensive
technical support and services to ensure that our customers have
the best experience possible. The following technical support and
services are included:
- Design and engineering support to ensure the building meets all
relevant codes and standards
- Fabrication and construction support to ensure the building is
constructed correctly and efficiently
- Quality control and inspection to ensure that all materials and
components meet our high standards
- Project management support to ensure that the project is
completed on time and within budget
Our team of experts is available to answer any questions you may
have and to provide any additional support that you may need
throughout the process. We are committed to ensuring the success of
your project and to providing you with the highest level of
customer service possible.
