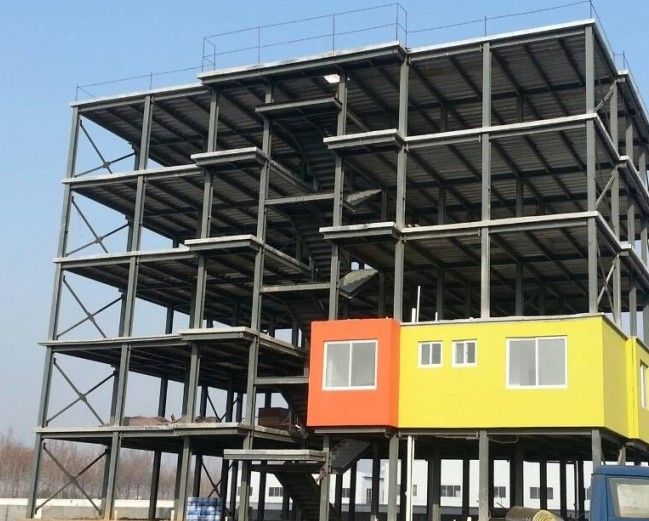

High Durability Surfacement Painted Or Galvanized High Rise Steel Building Construction

Product Description:

Thanks to its wide range of benefits, steel is the preferred material for construction in the commercial sector. Along with this, steel-framed systems provide a high level of prefabrication. Thus they can be used for projects within the city, guaranteeing high speed of construction and minimum on-site storage of materials. Steel enables builders to offer high-quality, flexible, and energy-efficient buildings while ensuring high-speed construction. Therefore, steel commands over 70% market share worldwide.

Technical Parameters:

Specifications
1)Size(m):	Width * Length * Height;
2)Type:	Single slope, double slope, Multi-slope;
	Single span, double-span, Multi-span;
	Single floor, double-floor, Multi-floor;
3) Base:	steel foundation bolts
4) Steel frame:	Material Q345(S355JR)(Gr50)or Q235(S235JR) steel;
	Straight cross-section or Variable cross-section;
	steel welded H section painted or galvanized.
5) Bracing:	X-type or V-type or other type bracing made from angle, round bar, etc ;
6) Wall & Roof Purlin:	C section channel or Z section channel ,Size from C80~C300; Z100~Z300;
7) Roof & wall cladding	Single color corrugated steel sheet 0.326~0.7mm thickness;
	Sandwich panel with EPS, ROCK WOOL,GLASS WOOL, PU etc insulation, thickness around 50mm 75mm 100mm 120mm 150mm 200mm;
	recommend coating PVDF SMP HDP PE
8)Window:	UPVC/PVC or Aluminum Alloy window frame with glass.
9)Door:	Exterior door:Sliding or Roller shutter door.
	Internal door:50mm thickness EPS sandwich panel with an aluminum alloy door frame
10) Gutter material:	Color steel sheet or galvanized steel or stainless steel;
11)Rainspout:	PVC pipe
12)Connection	high strength bolts ,intensive bolt,self-drilling screws.
13)Accessories:	Skylight panel, Ventilation, Fasteners etc
14)Surface process:	Shot blasting Sa2.5;Two layers of Anti-rust Painting or galvanized
15) Packing:	Main steel frame without packing load in 40' GP, roof and wall panel load in 40' HQ

Applications:

Support and Services:

The Multi Storey Steel Building product includes comprehensive technical support and services to ensure the success of your project. Our team of experts will work with you to provide:

• Design assistance and advice
• Engineering support
• Construction guidance
• Quality control and inspection
• Project management
• Installation supervision

Our goal is to ensure that your Multi Storey Steel Building is built to the highest standards and meets your specific requirements. We are committed to providing exceptional customer service and support throughout the entire process, from initial design to final installation and beyond.

Packing and Shipping:

Product Packaging:

• All steel components are carefully packed to prevent damage during transportation.
• Components are labeled for easy identification during assembly.
• Assembly instructions and necessary hardware are included.

Shipping:

• Delivery times may vary depending on the location of the buyer.
• Buyer is responsible for unloading the components from the delivery truck and storing them in a safe and secure location.

FAQ:

Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to Qingdao port. And we have total 3 workshops from steel structure to wall and roof sheet.

Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.

Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirement.

Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity, partial shipment is allowed for big order.

Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.

Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution according to your requirements before placing order. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.

3. Fillet weld leg size:

3.1. Definition of fillet weld leg size(K):

Length of catheti from maximum isosceles triangle that drawn from the section of fillet welding seam.

For the fillet weld leg size without groove, please see illustration 1；

For the fillet weld leg size with PJP or CJP groove, please see illustration 2(take CJP for example)

.2. Fillet weld leg size requirements:

3.2.1. All the fillet weld size should not be less than the drawing and design values.

3.2.2. Minimum fillet weld size K≥1.5×,

t——thickness of thicker welding member(We could adopt the thickness of the thinner welding members when it is welded by low-hydrogen alkaline electrode). The minimum fillet weld size could be reduced by 1mm when it is adopted by sub-merged arch welding；

The fillet weld size should be in increased by 1mm when it is applying to the single side fillet weld of T section.

When the thickness t≤4mm, the minimum fillet weld size should be same with the member thickness.

3.2.3. Maximum fillet weld size K≤1.2t

t——thickness of thinner welding members(except the steel tube structure)

3.2.4. When the fillet weld being on the edge of welding members(t), the fillet weld size cannot exceed the edge of the welding member and the maximum weld size is as followings:

1)when t≤6mm,K≤t；

2)when t>6mm,K≤t-(1~2)mm

3.2.5. For fillet weld size in circular holes or trench holes, K≤(1/3)d

d——diameter of circular hole or short diameter of trench hole

3.2.6. For the fillet weld size without groove, it should not be more than 17mm. If it has to be more than 17mm due to the load consideration, out of economical factor, it should be changed to CJP or PJP fillet welding.

3.2.7. For the fillet weld that requires CJP:K≥t/4, see photos of 3(a)(b)(c). For the fillet weld size between web plate and top flange plate from some important members(e.g.if there is fatigue design requirement), crane beam or similar members, it could be t/2 and cannot more than 10mm meanwhile.

Qingdao KXD Steel Structure Co., Ltd, is one of the largest manufacturers of steel buildings, specialized design and manufacturer for pre-engineered/fabricated steel buildings and specialized architectural/structures in China with capacity over 10000 tons monthly and having state of the art manufacturing facility with laser and robotic machines in our 3 production units.

In a bid to render our clients with impeccable products and services, our company has acquired CE certification (EN1090 certificate), ISO 9001, ISO140001, ISO45001 Certificate and WPQR for anticipated apprasal from our clients. Our footprints shall be witnessed in a large number of countries and regions such as Canada, Australia, Peru, Sri Lanka, France, Brazil, England, America, Ethiopia, Algeria, etc., that is to say, more than 130 countries around over the world.

What attaches great importance to the success of a steel building company is a solid design and engineering team. At KXD, you shall witness more than 50 members of designers, architects, detailers, consultants etc. KXD is destined to offer tailed and reliable design and engineering services to each of our customer whether for industrial, commercial or agricultural property developments.

Based on the moto of Trustyworthiness, Professionalism, Cooperation, Mutual benefits, our company is building a comprehensive industrial chain system gradually and making great efforts to supply our quality products and perfect after-sales services to worldwide clients. Our goal is to be a household name in the steel building industry.
