Prefabricated Steel Structure Metal Commercial Multi-Storey
Construction Building for Prefab Office Block/Shopping Mall
Product Description:
H Beam frame: weld H beam or hot rolled H beam
Hot Rolled H Beam: Hot rolled H-beams are molded in one pass through the rolling mill
according to their appearance and shape.no need for weld
inspection.The processing volume of hot-rolled H-beam is small, and
the construction period is slightly shorter,In the same section,
the local stability of hot rolled
Weld H Beam: It can be processed, designed, and combined with any project, and
can manufacture special specifications to meet the actual needs of
special projects
Features:
- Product Name: Commercial Steel Building
- Material: Steel
- Insulation: Included
- Durability: High
- Size: Customizable
- Installation: DIY Or Professional
- Heavy Steel Structure
- Heavy Steel Fabrication
- Commercial Building
| Purlin & Wall girt | Corrugated steel sheet and flashing trimming | Sandwich panel |

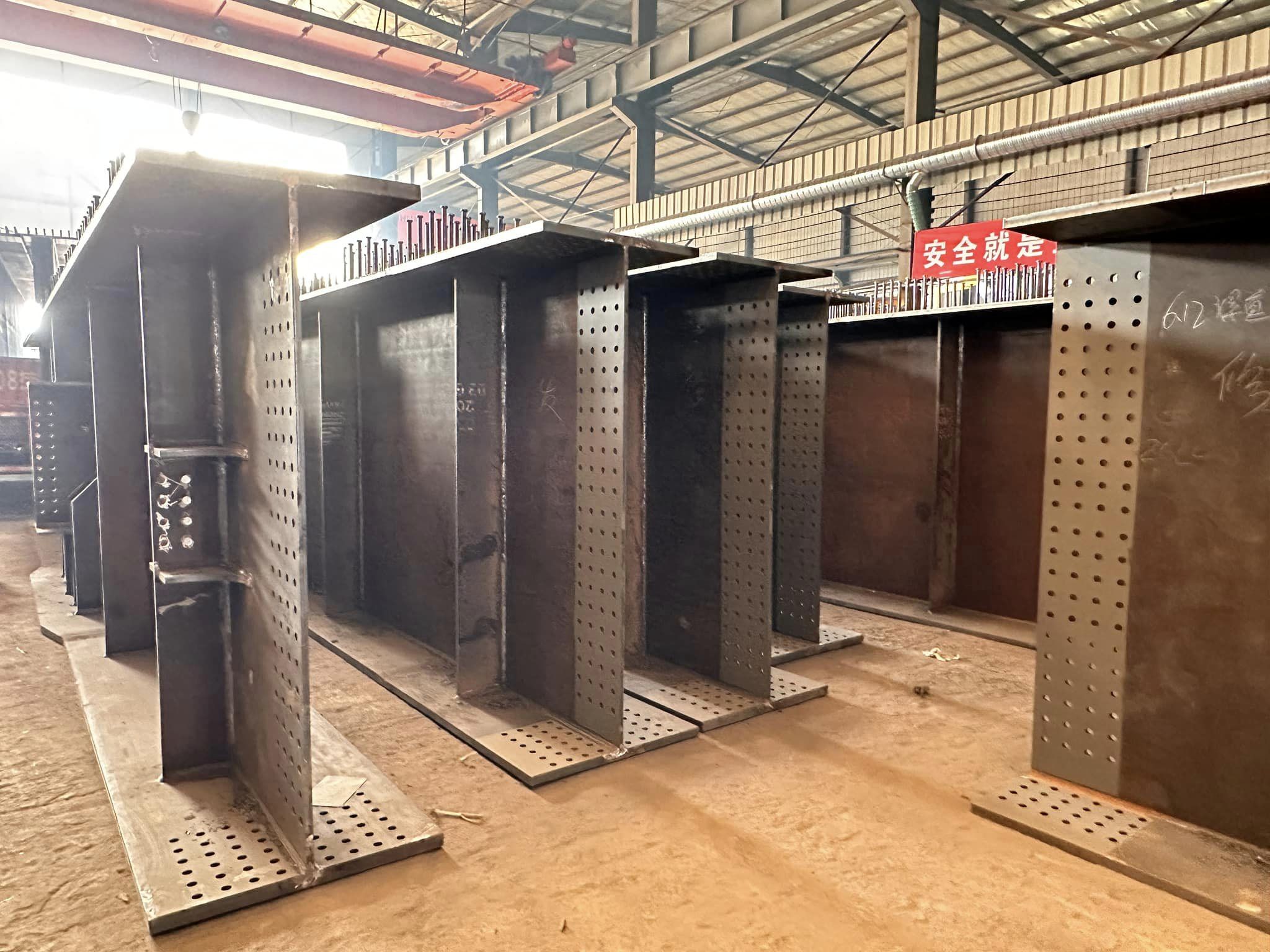

Main steel structure frame :
Material: Weld H beam or hot rolled H beam etc
Grade:Q355 (S355JR)
Surface: Hot dip Galvanized zinc coator or Anti-rust paint
rich-zinc epoxy paint etc
Usage: Make up the main steel structure frame | Single sheet:
Color: Ral. colors, optional
Thickness:0.13-0.8mm
Type:V840,V900,etc mutiple wave type
Usage: Prefabricated Building Roof or wall coverage or cladding
flashing trimming cover: To cover the ridge,wall out corner etc to
avoid leak air or water | Sandwich panel or insulation:
Structure two layer PPGI surface sheets and insulation core
Type: EPS sandwich panel, Rock wool sandwich panel, Glass wool
sandwich panel, PU/PIR sandwich panel etc
Other insulation: glass wool blanket or PE foam
Applications: Fire against and warm insulation
Advantage: Removable, light weight and easy to installed |

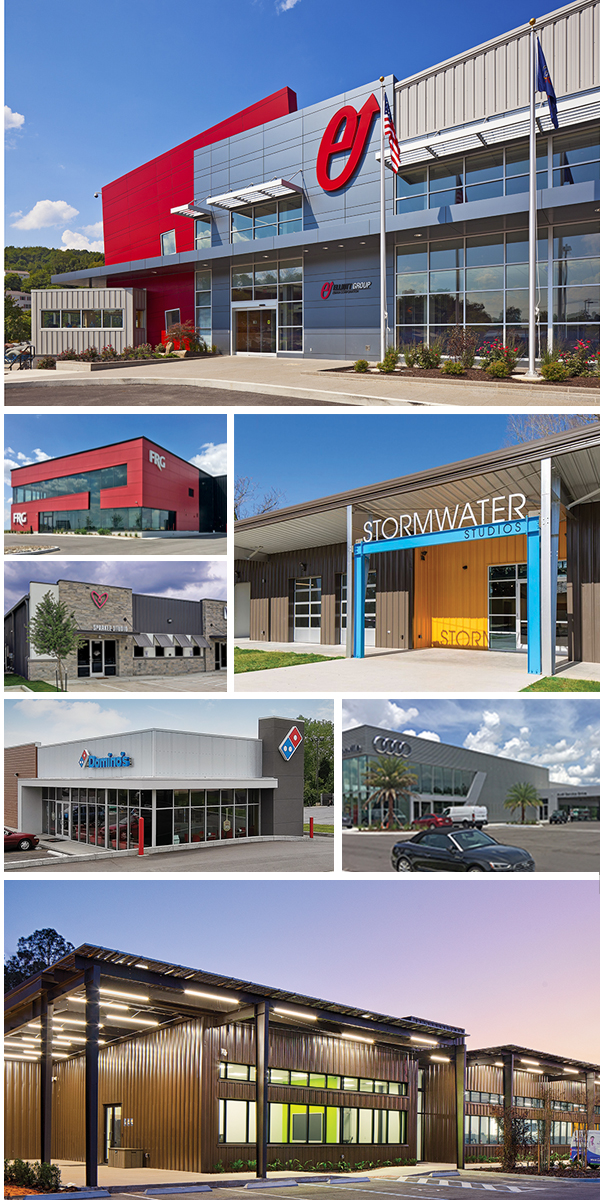

Applications:
| Main Structure | Column | Q355/Q235 H- steel , Box column is also available |
| Rafter, Beam | Q355/Q235 H- steel |
| Surface processing options | 1. Epoxy zinc-rich primer + epoxy mica intermediate paint (120μm
thickness) |
| 2. Hot dip galvanization |
| Sub Structure | Purlin | Q355B, C/Z steel section, galvanization 275g/m2 |
| Angle brace | Q235B, L- steel |
| Cross bracing | Q235B round bar, L-steel |
| Tie bar | Q235B, round pipe |
| Batter brace | Q235B, round bar |
| Roof System | Roof panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two
sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm,
thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm/0.5mm/mm |
| Gutter options | 1. Galvanized steel gutter, thickness 2.0mm/2.5mm, 3.0mm |
| 2. Painted, Pre-finished steel gutter, thickness 0.4mm/0.5mm/0.6mm |
| Down spout | PVC pipe |
| Steel flashing and cover | Steel sheet for roof ridge cap, gable wall end cover and corner
cover |
| Options | Roof skylight 1.8mm PVC sheet and stainless steel ventilator |
| Wall System | Wall panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two
sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm,
thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm/0.5mm/mm |
| 3. Brick wall (provided by client) |
| Door | 1. Roller door for truck, size customized |
| 2. Sliding door for truck, size customized |
| 3. Access door, steel door, glass door etc. |
| Window | PVC or Aluminum frame, Fixed, swing, sliding, louver etc, size
customized |
| Steel flashing and cover | Steel sheet end cover and corner cover |
| Accessories and fasteners | | Anchor bolts, chemical bolts, high strength bolts, ordinary bolts,
self-drilling screws, rivet etc. |
| Other Options | | Crane 5T, 6T, 10T, 16T, 30T etc. |
Support and Services:
Our Commercial Steel Building product technical support team is
available to assist you with any questions or concerns you may have
about our product. We offer a range of services to ensure that your
steel building is installed properly and functions as it should.
Our technical support team can provide guidance on:
- Building design and engineering
- Structural requirements
- Installation techniques
- Maintenance and repair
In addition to technical support, we offer a variety of services to
help you get the most out of your commercial steel building,
including:
- Custom design and engineering
- Project management
- Installation and construction
- Building customization options
Our goal is to provide our customers with the support and services
they need to ensure their commercial steel building meets their
unique needs and exceeds their expectations. Contact us today to
learn more about how we can help you with your project.
FAQ:
Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to
Qingdao port. And we have total 3 workshops from steel structure to
wall and roof sheet.
Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through
cutting, bending, welding, shot blasting, ultrasonic testing,
packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client
requirement.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity,
partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors
guiding installation is available. We can do turnkey job for some
kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution
according to your requirements before placing order. Proposal
drawing, Shop drawing, 3D drawing, Materials photos, Finished
projects photos are available, which will help you understand the
solution we provided deeply.
