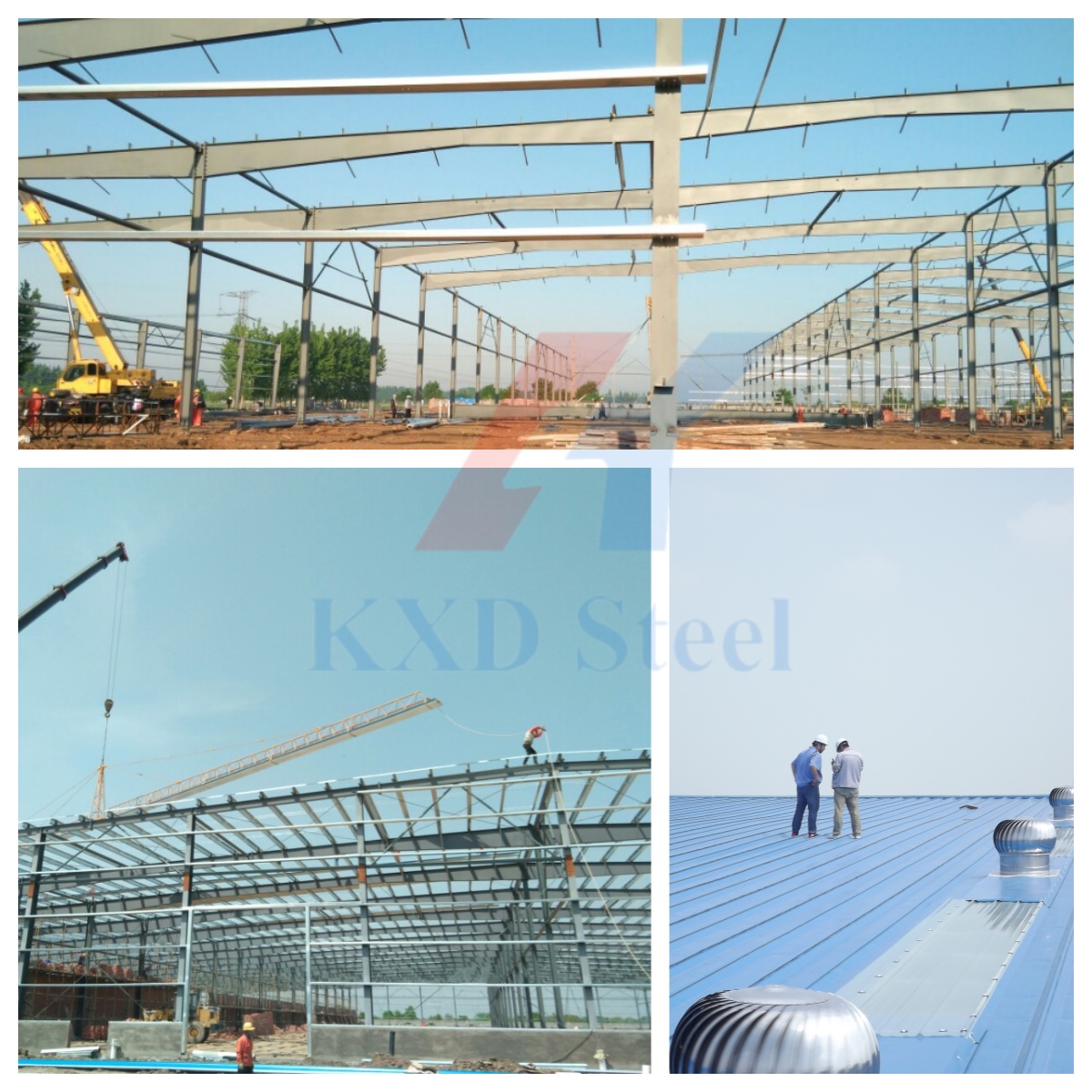

Discount Prefabricated Prefab Modular Light Industry Commercial
Metal Steel Structure Frame
Product Description:
| List of warehouse materials: |
| The basic components of light steel structure | 1. Main rigid frame: composed of columns and beams;If there is a crane, a crane girder
is also included.
A.common materials: Q235, Q355;
B. Common cross-sectional forms of beams and columns: H-shaped
steel, trusses (beams are mostly used), lattice columns;
C. Common structural forms: portal rigid frame, frame structure; |
2. Support system: including tie rods, horizontal supports, inter-column supports, and
corner supports.
A. Tie rods are usually used: steel pipes, rectangular
pipes;H-beam, channel steel, C-beam, angle iron and so on can also
be used;
B. The inter-column support is usually used: round steel, steel
pipe, angle iron;H-beam, channel steel, I-beam, etc. can also be
used;
C. Angle braces are usually used: angle iron; |
3. Enclosure system: including purlins, purlins rods, roof panels, wall panels, doors,
windows, lighting panels, and gas floors.
A. Purlin: mainly used, C-shaped steel and Z-shaped steel are
cold-formed with hot-drawn steel plate and hot-rolled galvanized
steel plate.
B. Wall and roof color plates: mainly using high-strength,
cold-rolled color steel plates, galvanized or aluminum-zinc color
steel plates, stainless steel plates, aluminum alloy plates, and
titanium alloy plates.Commonly used in China is galvanized or
aluminum-zinc color steel plate. |
| Material classification | 1. According to the composition of the material: ordinary carbon steel (Q235) and ordinary low-alloy steel (Q355,
Q390, Q420);Ordinary low-alloy steel is the addition of one or
several alloying elements on the basis of ordinary carbon steel.
2. According to the intensity: Q235, Q355, Q390, Q420;Among them, Q235 and Q355 are commonly used
materials. |
| Basic data for the design(depand on the project need) | 1. Dead load: must be provided |
| 2. Live load: must be provided |
| 3. Wind load: must be provided |
| 4. Snow load: required in areas with snow |
| 5. Ash load: it needs to be provided in dusty places (such as
deserts and cement plants) |
| 6. Crane load: lifting weight, number of cranes. |
| 7. Seismic load: must be provided |
| The component connection method of the steel structure | 1. Welding connection |
| 2. High-strength bolt connection |
| 3. Rivet connection |
| Anti-corrosion method of steel components (commonly used) | 1. Galvanizing: |
| 2. Spray anticorrosive paint: red dan, iron red, epoxy zinc-rich
paint; |
| Advantages of steel structure | a) High strength; |
| b) Good reliability; |
| c) Easy to construct. |
| Features of lightweight steel structure | Lightweight, accurate, convenient and fast molding, convenient for
industrial production and transportation, construction and
installation are more convenient, short construction period and low
cost. |
Technical Parameters:
| Item Name | Materials Characteristics | Material Grade | Surface Treatment |
| Steel Column | H shape,Box,Steel Pipe,Hot tolled sheet | Q235B,Q345B | Paint or Hot dip Galvanized |
| Steel beam | H shape,Box,Steel Pipe,Hot tolled sheet | Q235B,Q345B | Paint or Hot dip Galvanized |
| Steel Bracing | Steel Rod,Steel Pipe,Angle Steel | Q235B,Q345B | Paint or Hot dip Galvanized |
| Steel Purlin | C or Z purlins(Thickness1.8mm~3.0mm) | Q235B,Q345B | Hot dip Galvanized |
| External Wall panels,Roof panels | Single colorful corrugate steel sheet,sandwich panels with EPS,Rock
wool,PU. | Galvanized Steel+Painting | Alu-zin 150g,Fluorocarbon pain |
| Steel buildings Door | Slidding or Rolling door | Steel or Aluminum sheet | Paint or Hot dip galvanized |
| Steel buildings Windows | Aluminum alloy-Glass,Aluminum alloy-shutter | T=1.0-2.0mm | Alloy |
| Skylighting panels | FRP T=1.2mm-1.8mm | Coefficient of thermal expansion:2.2x10-5/cm | Light Tranmitar 85% |
| Ventilator | Turbine ventilator on a ridge | Steel,Stainless steel ,PC | Paint or Hot dip Galvanized |
| Gutter | Galvanized steel plate,Stainless steel plate | T=2.0mm | Hot dip galvanized |
| Downpipe | PVC pipe,color steelpipe Y=0.5mm | Dia110mm | paint |
| Hight Bolt | Ordinary ,High strength | 10.9S,4.8S | Hot dip galvanized,Steel |
| Ground bolts | Steel RodM24,M27,M30,M33,M39,M42 | 10.9S | Steel |
Applications:
Packing and Shipping:
Product Packaging:
- All steel structure components are packed in bundles and wrapped in
plastic sheets.
- Roof and wall panels are packed in bundles and wrapped in plastic
sheets.
- Hardware and accessories are packed in boxes.
- All packages are marked with labels indicating the contents and
destination.
Shipping:
- Shipping will be arranged by our company or the customer can use
their own shipping agent.
- The shipping method will depend on the size and weight of the
product.
- Shipping fees will be quoted based on the destination and shipping
method.
- We will provide all necessary documentation for customs clearance.
FAQ:
Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to
Qingdao port. And we have total 3 workshops from steel structure to
wall and roof sheet.
Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through
cutting, bending, welding, shot blasting, ultrasonic testing,
packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client
requirement.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity,
partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors
guiding installation is available. We can do turnkey job for some
kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution
according to your requirements before placing order. Proposal
drawing, Shop drawing, 3D drawing, Materials photos, Finished
projects photos are available, which will help you understand the
solution we provided deeply.
